Compressible hydrodynamics solvers¶
The equations of compressible hydrodynamics take the form:
with \(\rho E = \rho e + \frac{1}{2} \rho |U|^2\) and \(p = p(\rho, e)\).
pyro has several compressible solvers:
compressible
is based on a directionally unsplit (the corner transport upwind algorithm) piecewise linear method for the Euler equationscompressible_rk
uses a method of lines time-integration approach with piecewise linear spatial reconstruction for the Euler equationscompressible_fv4
uses a 4th order accurate method with RK4 time integration
The implementations here have flattening at shocks, artificial viscosity, a simple gamma-law equation of state, and (in some cases) a choice of Riemann solvers. Optional constant gravity in the vertical direction is allowed.
The main parameters that affect this solver are:
[driver] |
|
---|---|
cfl |
the advective CFL number (what fraction of a zone can we cross in a single timestep) |
[compressible] |
|
---|---|
use_flattening |
do we flatten the profiles at shocks? (0=no, 1=yes) |
z0 |
the parameters that affect the flattening algorithm |
z1 |
|
delta |
|
cvisc |
the coefficient for the artifical viscosity |
limiter |
what type of limiting to use in reconstructing the slopes. 0 means use an unlimited second-order centered difference. 1 is the MC limiter, and 2 is the 4th-order MC limiter |
riemann |
which Riemann solver do we use? “HLLE” for the HLLE solver, or “CGF” for the Colella, Glaz, and Ferguson solver |
grav |
the gravitational acceleration (vertical/y direction) |
temporal_method |
the MOL integration method to use (RK2, TVD2, TVD3, RK4)
(compressible_rk and compressible_fv4 only) |
[eos] |
|
---|---|
gamma |
the constant adiabatic index for the gas |
Example problems¶
Note
The 4th-order accurate solver (compressible_fv4
) requires that
the initialization create cell-averages accurate to 4th-order. To
allow for all the solvers to use the same problem setups, we assume
that the initialization routines initialize cell-centers (which is
fine for 2nd-order accuracy), and the
preevolve()
method will convert
these to cell-averages automatically after initialization.
Note
All the compressible solvers share the same problems/
directory, which lives in compressible/problems/
. For the
other compressible solvers, we simply use a symbolic-link to this
directory in the solver’s directory.
Sod¶
The Sod problem is a standard hydrodynamics problem. It is a one-dimensional shock tube (two states separated by an interface), that exhibits all three hydrodynamic waves: a shock, contact, and rarefaction. Furthermore, there are exact solutions for a gamma-law equation of state, so we can check our solution against these exact solutions. See Toro’s book for details on this problem and the exact Riemann solver.
Because it is one-dimensional, we run it in narrow domains in the x- or y-directions. It can be run as:
./pyro.py compressible sod inputs.sod.x
./pyro.py compressible sod inputs.sod.y

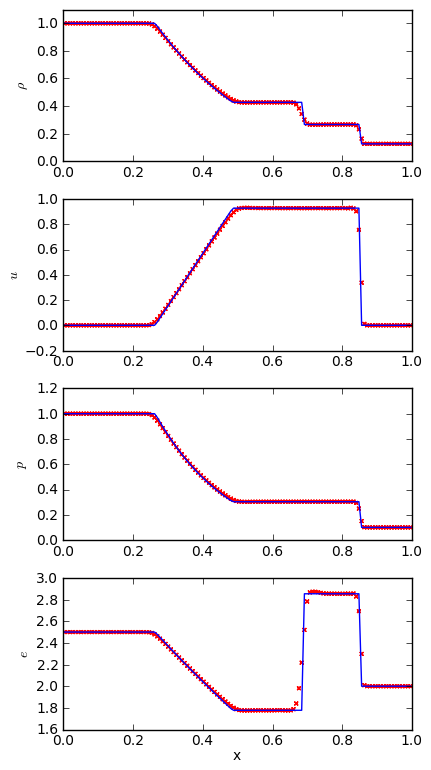

A simple script, sod_compare.py
in analysis/
will read a pyro output
file and plot the solution over the exact Sod solution. Below we see
the result for a Sod run with 128 points in the x-direction, gamma =
1.4, and run until t = 0.2 s.
We see excellent agreement for all quantities. The shock wave is very steep, as expected. The contact wave is smeared out over ~5 zones—this is discussed in the notes above, and can be improved in the PPM method with contact steepening.
Sedov¶
The Sedov blast wave problem is another standard test with an analytic solution (Sedov 1959). A lot of energy is point into a point in a uniform medium and a blast wave propagates outward. The Sedov problem is run as:
./pyro.py compressible sedov inputs.sedov
The video below shows the output from a 128 x 128 grid with the energy put in a radius of 0.0125 surrounding the center of the domain. A gamma-law EOS with gamma = 1.4 is used, and we run until 0.1
We see some grid effects because it is hard to initialize a small
circular explosion on a rectangular grid. To compare to the analytic
solution, we need to radially bin the data. Since this is a 2-d
explosion, the physical geometry it represents is a cylindrical blast
wave, so we compare to Sedov’s cylindrical solution. The radial
binning is done with the sedov_compare.py
script in analysis/
This shows good agreement with the analytic solution.
quad¶

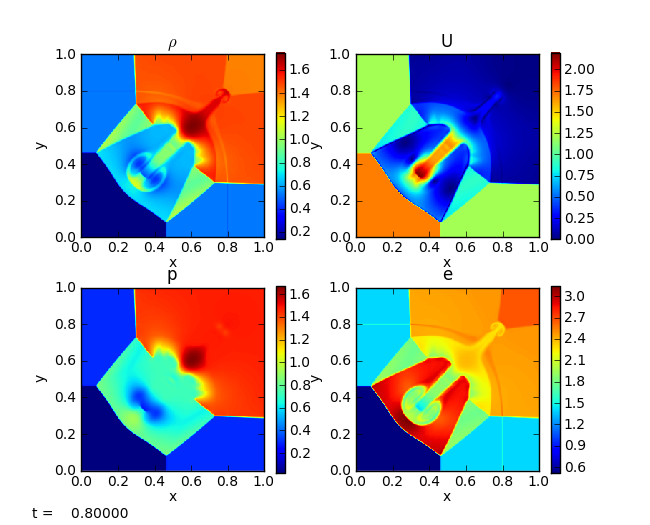

The quad problem sets up different states in four regions of the domain and watches the complex interfaces that develop as shocks interact. This problem has appeared in several places (and a detailed investigation is online by Pawel Artymowicz). It is run as:
./pyro.py compressible quad inputs.quad
rt¶
The Rayleigh-Taylor problem puts a dense fluid over a lighter one and perturbs the interface with a sinusoidal velocity. Hydrostatic boundary conditions are used to ensure any initial pressure waves can escape the domain. It is run as:
./pyro.py compressible er inputs.rt
bubble¶
The bubble problem initializes a hot spot in a stratified domain and watches it buoyantly rise and roll up. This is run as:
./pyro.py compressible bubble inputs.bubble
The shock at the top of the domain is because we cut off the stratified atmosphere at some low density and the resulting material above that rains down on our atmosphere. Also note the acoustic signal propagating outward from the bubble (visible in the U and e panels).
Exercises¶
Explorations¶
- Measure the growth rate of the Rayleigh-Taylor instability for different wavenumbers.
- There are multiple Riemann solvers in the compressible algorithm. Run the same problem with the different Riemann solvers and look at the differences. Toro’s text is a good book to help understand what is happening.
- Run the problems with and without limiting—do you notice any overshoots?
Extensions¶
- Limit on the characteristic variables instead of the primitive variables. What changes do you see? (the notes show how to implement this change.)
- Add passively advected species to the solver.
- Add an external heating term to the equations.
- Add 2-d axisymmetric coordinates (r-z) to the solver. This is discussed in the notes. Run the Sedov problem with the explosion on the symmetric axis—now the solution will behave like the spherical sedov explosion instead of the cylindrical explosion.
- Swap the piecewise linear reconstruction for piecewise parabolic (PPM). The notes and the Miller and Colella paper provide a good basis for this. Research the Roe Riemann solver and implement it in pyro.
Going further¶
The compressible algorithm presented here is essentially the single-grid hydrodynamics algorithm used in the Castro code—an adaptive mesh radiation hydrodynamics code developed at CCSE/LBNL. Castro is freely available for download.
A simple, pure Fortran, 1-d compressible hydrodynamics code that does piecewise constant, linear, or parabolic (PPM) reconstruction is also available. See the hydro1d page.
